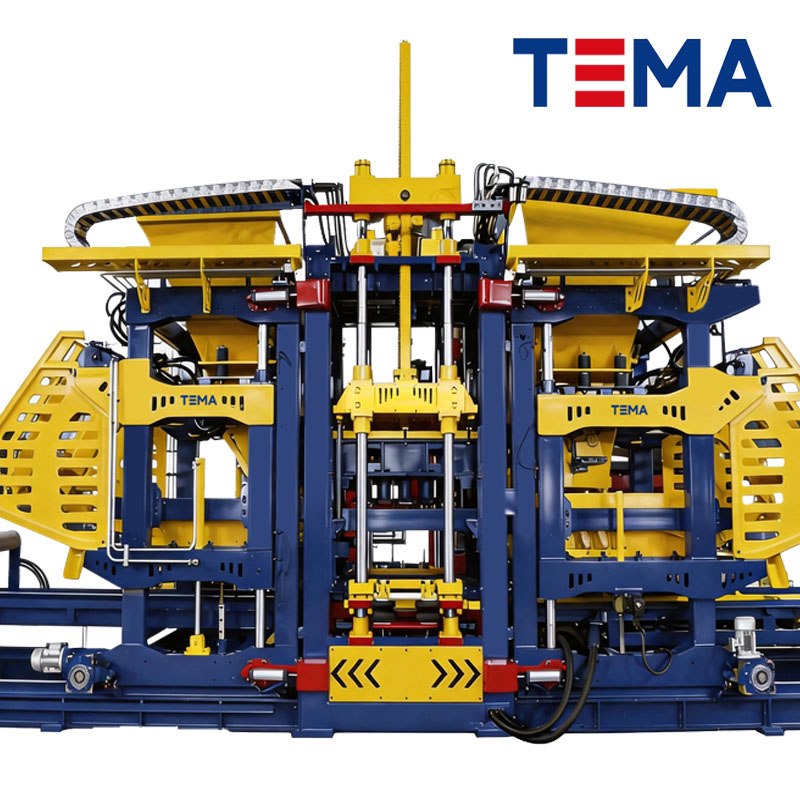

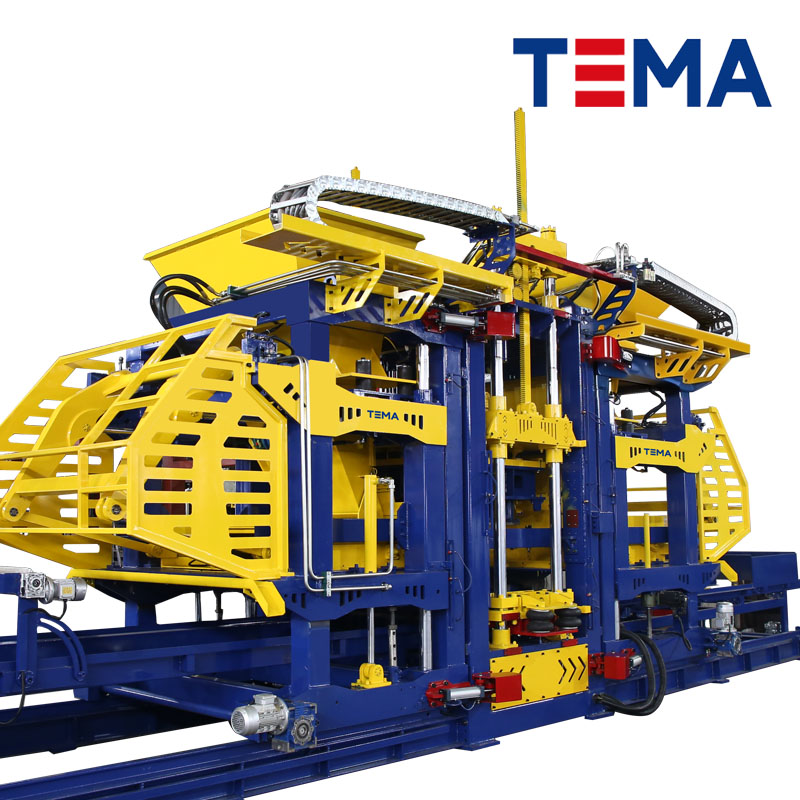

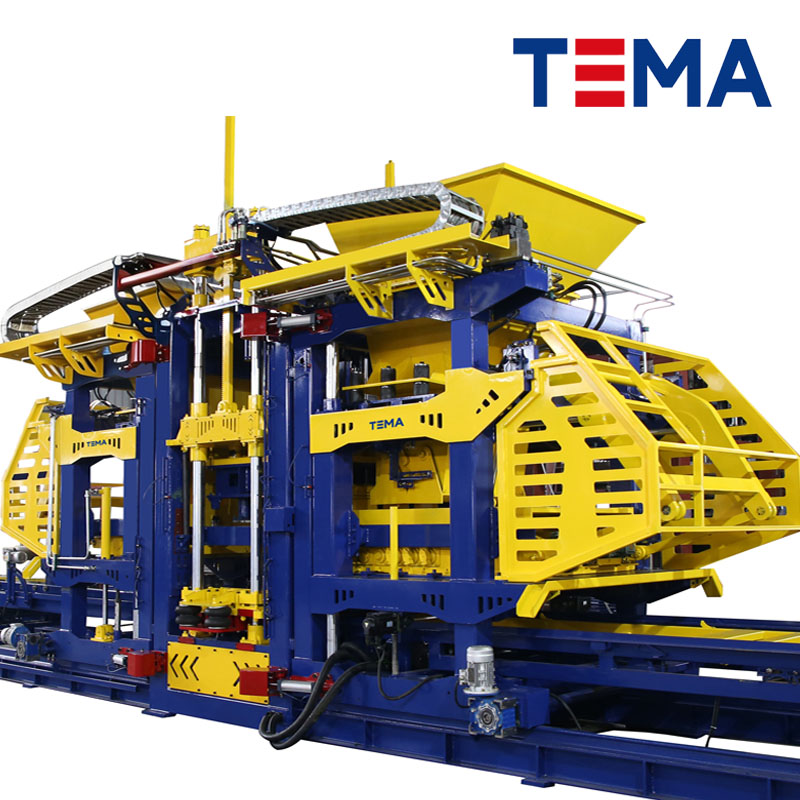

TM18000 High Capacity and Affordable Chinese Hollow Block Making Machine has a pallet size of 1400 x 1300mm, it is a highly efficient automatic concrete block and paving brick making machine, specifically engineered for the versatile production of high-quality paving brick, curbstones, paver blocks, hollow blocks, and solid bricks. Combining a robust German-standard steel frame with advanced Siemens PLC control and a Japanese Yuken hydraulic system, it delivers exceptional operational stability and precise molding.
Item No :
TM18000Order(MOQ) :
1 UnitPayment :
LC, TT, etcProduct Origin :
ChinaColor :
Blue & YellowShipping Port :
XiamenLead Time :
45 Working DaysWeight :
26 TonTM18000 High Capacity & Affordable Chinese Hollow Block Making Machine
With a massive pallet size of 1400 x 1300mm, the TM18000 is a highly efficient automatic concrete block making machine. It is specifically engineered to provide an affordable, high-capacity solution for the versatile mass production of hollow blocks, paving bricks, curbstones, and solid bricks.
| TM18000 Specifications | |
|---|---|
| Pallet Size: 1400×1300×45 mm | Vibration Force: 4×16.5kw (Servo-driven Controlled) / 160-185 KN |
| Forming Area: 1350×1250 mm | Control System: Siemens PLC Control, Online Remote Service |
| Products Height: 50-500mm | Feeder Car Design: Double swing arms driven (Siemens motor) |
| Cycle Time: 15-20 Seconds | Hydraulic System: 37+22kw (Japanese Yuken proportional valves) |
| Machine Gross Weight: 25 Ton | Power Consumption: 140 kW |
| Product Type | Size (mm) | Pieces/Cycle | Production / 8-10 hours |
|---|---|---|---|
| Hollow Block | 400×200×200 | 18 | 21,600 - 27,000 |
| Hollow Block | 400×150×200 | 24 | 28,800 - 36,000 |
| Rectangular Paver | 200×100×60 | 60 | 60,000 - 90,000 |
| Zigzag Paver | 225×112.5×60 | 50 | 30,000 - 45,000 |
By simply replacing the molds, the TM18000 High capacity hollow block machine serves as a multi-purpose manufacturing equipment for various concrete blocks:
The TM18000 is a high capacity hollow block making machine. By changing the molds, it can efficiently produce paving bricks, hollow blocks, solid cement bricks, interlocking pavers, curbstones, and retaining wall blocks.
For standard 400x200x200mm hollow blocks, this high capacity hollow block making machine yields about 21,600 to 27,000 pieces per 8-10 hour shift, making it an excellent investment for large-scale mass production.
Yes. Our TM18000 high capacity hollow block making machine is designed to use crushed stone, sand, stone powder, cement, as well as coal fly ash, cinder, slag, and other industrial wastes, helping you save on material costs while producing high-quality masonry products.
