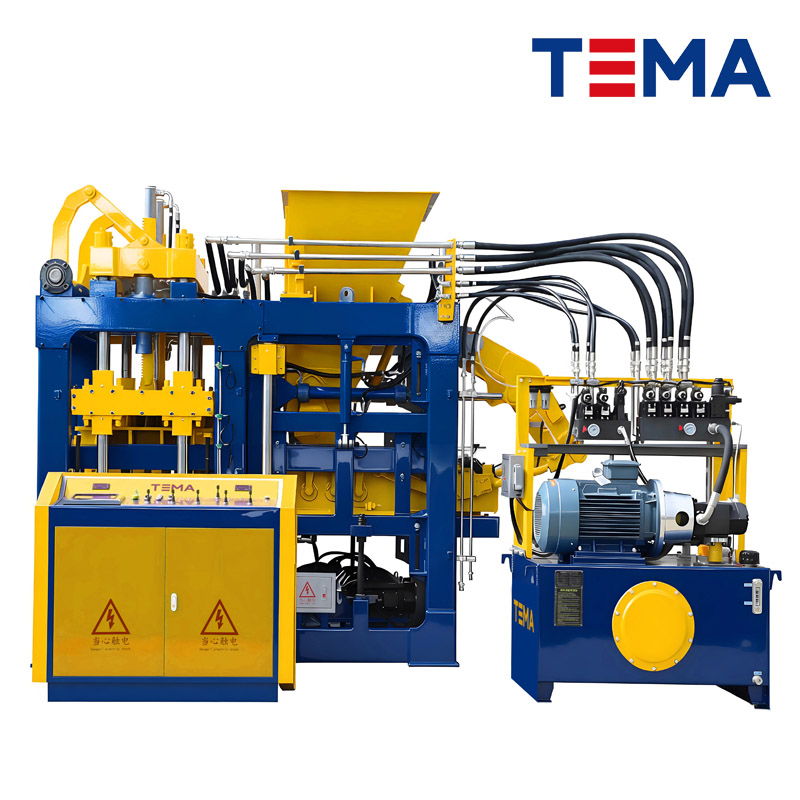

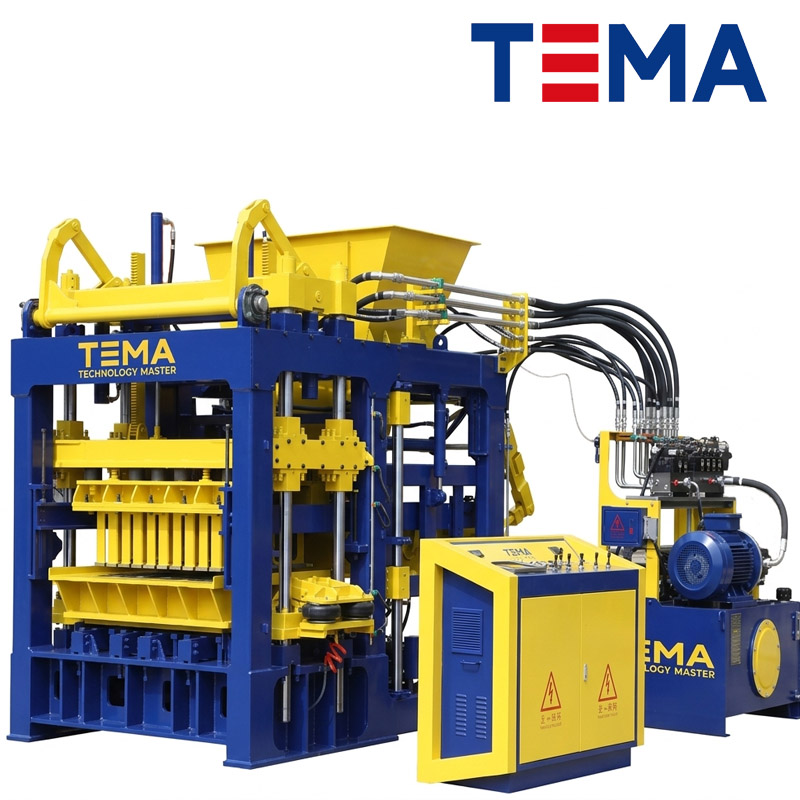

TM8000 State-Of-The-Art Concrete Block Paver Production Line
The TM8000 is a highly efficient automatic concrete block and paver making machine, specifically engineered for the versatile production of high-quality paver stone and hollow blocks.
TM8000 State-Of-The-Art Concrete Block Paver Production Line
The TM8000 is a highly efficient automatic concrete block and paver making machine, specifically engineered for the versatile production of high-quality paver stone and hollow blocks.
| TM9000 Specifications | |
|---|---|
| Pallet Size: 960×880×30 mm or 1100×750×30 mm | Vibration Force: 2×12.8kw (Servo-driven Controlled) / 120-135 KN |
| Forming Area: 900×830 mm or 1050×700 mm | Control System: Siemens PLC Control, Online Remote Service |
| Products Height: 50-200 mm, able to reach 500mm | Feeder Car Design: Double swing arms driven (Siemens motor) |
| Cycle Time: 15-20 Seconds | Hydraulic System: 22kw (Japanese Yuken proportional valves) |
| Machine Gross Weight: 12 Ton | Power Consumption: 55.55 kW |
| Product Type | Size (mm) | Pieces/Cycle | Production / 8 Working hours |
|---|---|---|---|
| Hollow Block | 400×200×200 | 8 | 10,000 - 12,000 |
| Hollow Block | 400×150×200 | 10 | 12,000 - 15,000 |
| Rectangular Paver | 200×100×60 | 28 | 28,000 - 42,000 |
| Zigzag Paver | 225×112.5×60 | 21 | 21,000 - 31,500 |
By simply replacing the molds, the TM8000 machine serves as a multi-purpose manufacturing machine for various concrete products:
The TM8000 is a versatile concrete paving block making machine. By changing the molds, it can efficiently produce paving blocks, fly ash bricks, hollow blocks, solid cement bricks, interlocking pavers, curbstones, and retaining wall blocks.
For standard 400x200x200mm hollow blocks, this automatic hollow block making machine yields about 12,000 to 15,000 pieces per 8 working hours shift, making it an excellent investment for medium to large-scale mass production.
Yes. Our TM8000 Paving brick manufacturing equipment is designed to utilize crushed stone, sand, cement, as well as fly ash, cinder, slag, and other industrial wastes, helping you save on material costs while producing high-quality concrete products.
