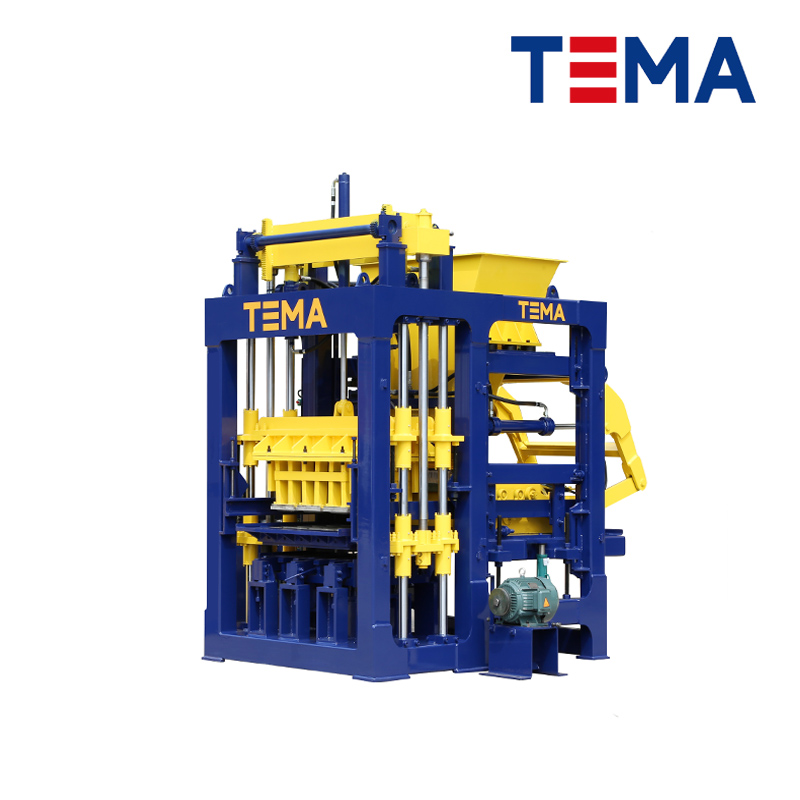

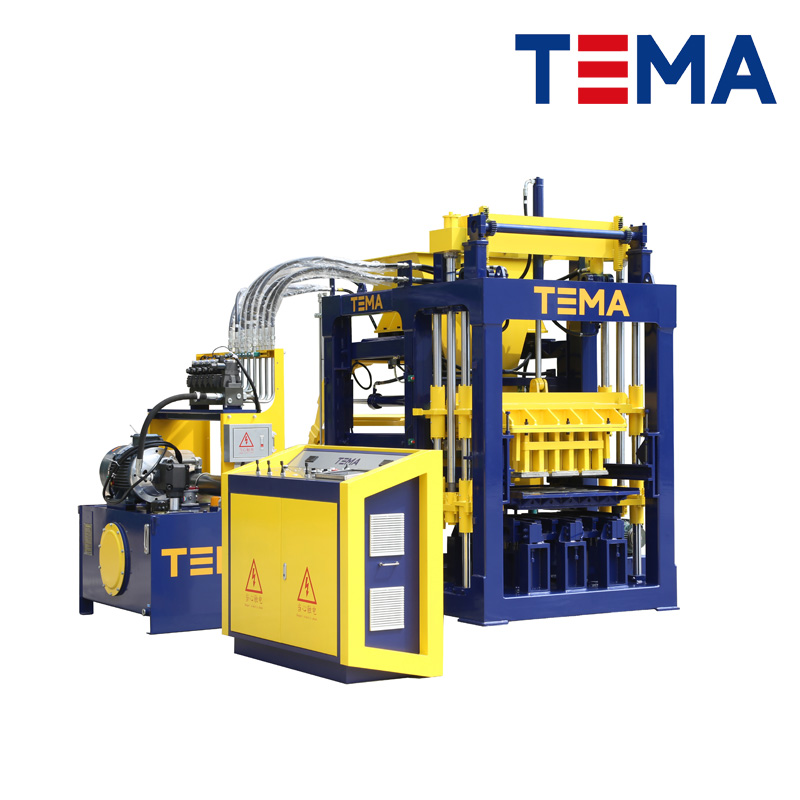

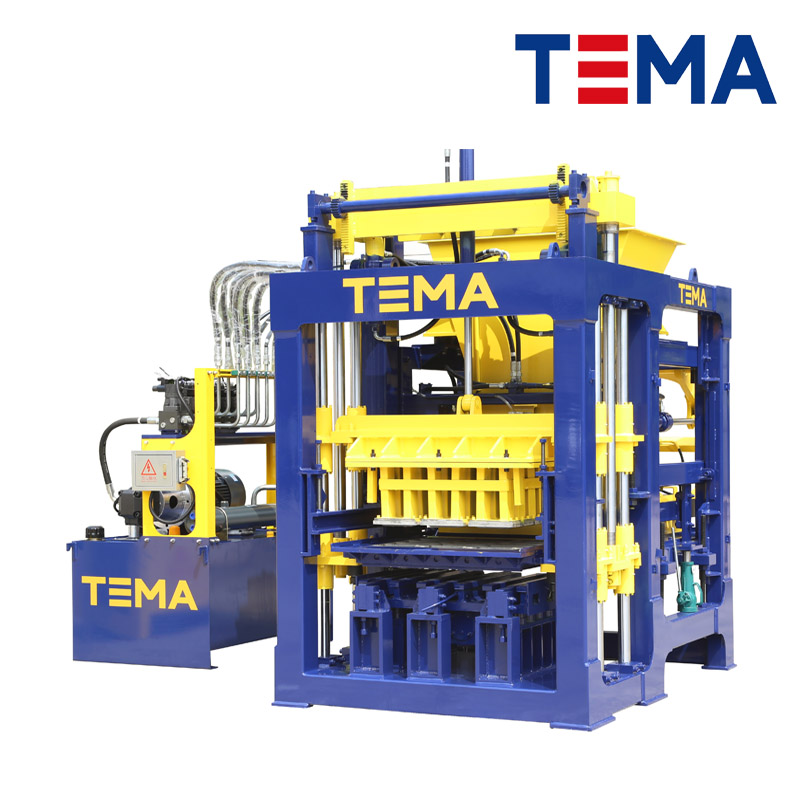

TM4000 Low price high performance fly ash brick and paving block machine
TM4000 Low price fly ash brick machine and paving block machine is a state-of-the-art machine for concrete block manufacturing, delivering exceptional efficiency and precision. It has a pallet size of 880 × 540mm which can maximum produce 6,000 pieces of 400×200×200mm hollow blocks or 300 square meter paver stone in 8 working hours.
|
Pallet Size: |
880 × 540 × 25mm |
|
Vibration Motors |
2 × 5.5kw inverter controlled vibration motors |
|
Vibration Table |
Dynamic and static vibration table |
|
Control System |
German Siemens PLC Control |
|
Hydraulic System |
Japanese Yuken Proportional hydraulic valves, 15kw motor |
|
Feeder Car Design |
Double swing arms driven, Powered by 3kw motor |
|
Products Height |
50-200mm |
|
Cycle Time: |
15-20 Seconds |
|
Power Consumption: |
28.5 kW |
|
Machine Gross Weight |
6 Ton |
TM4000 Low Price High Performance Fly Ash Brick and Paving Block Machine
The TM4000 is a state-of-the-art solution for concrete block manufacturing, delivering exceptional efficiency and precision at a highly competitive price. Specifically optimized for fly ash brick and paving block production, it offers a perfect balance between investment cost and high-density output.
| TM4000 Technical Specifications | |
|---|---|
| Pallet Size: 880 × 540 × 25 mm | Vibration Force: 2 × 5.5kw (Inverter Controlled) |
| Products Height: 50 - 200 mm | Vibration Table: Dynamic and Static Structure |
| Cycle Time: 15 - 20 Seconds | Control System: Siemens PLC Control |
| Hydraulic System: 15kw Motor (Yuken Valves) | Feeder Car: Double Swing Arms (3kw Motor) |
| Machine Gross Weight: 6 Ton | Power Consumption: 28.5 kW |
The TM4000 is highly versatile and supports the use of various raw materials to reduce production costs:
The TM4000 is designed to handle high ratios of fly ash while maintaining structural strength, thanks to its advanced Siemens PLC and Yuken hydraulic system, which are usually found in more expensive models.
In a typical 8-hour shift, the TM4000 can produce approximately 6,000 standard hollow blocks or 300 square meters of pavers, making it an excellent investment for medium-sized start-ups.
